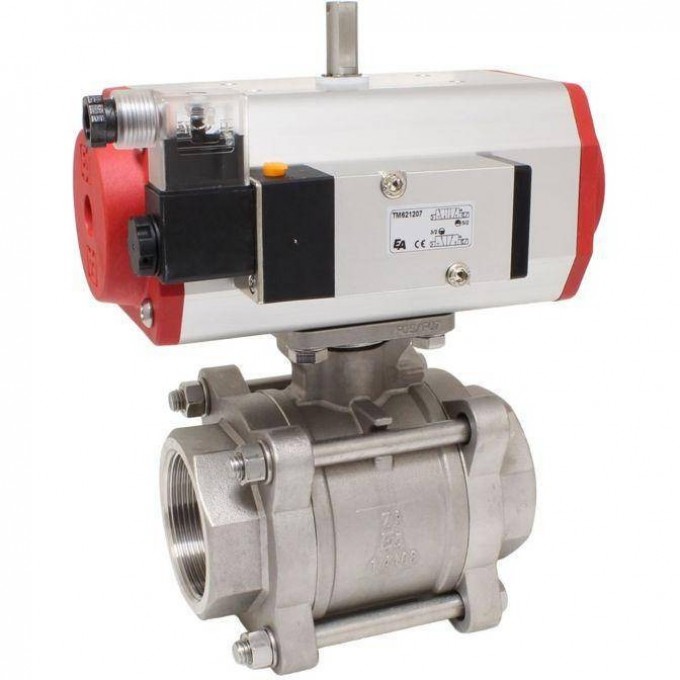

Шаровой кран END Armaturen ZA62-ED43/TM24DC END-ARMATUREN 162812

Шаровой кран END Armaturen ZA62-ED43/TM24DC от END-Armaturen — решение из линейки Шаровые краны, которое объединяет надежность и высокие эксплуатационные характеристики. Компания Earrussia.ru поставляет сертифицированные товары напрямую от производителей

Наши преимущества:

• Конкурентные цены и прозрачные условия работы
• Сопровождение специалистов от подбора до внедрения
• Быстрое оформление заказа и доставка в любую точку РФ
• Поставляем исключительно оригинальные изделия
• Короткие сроки поставки благодаря прямым контрактам

2-way stainless steel ball valve for shut-off of inert gases and liquids. The body is made of a three-part screwed body construction with full cylindrical bore. Due to the self-adjusting, multi-part stem seal, the ball valve is maintenance-free. The ball valve is stamped conform to AD approval and has a fire-safe certification and an anti-static device. A TA-Luft approval is in preparation.The mounting plate according to ISO 5211 enables a direct or distanced mounting of the pneumatic actuators, resulting in an extremely compact and functional unit. Due to the twin-piston system the force developed by the counter-running pistons is transmitted to one common pinion via two tooth racks solidly connected with the pistons. This principle ensures a linear torque transmission along the entire stroke.Also directly mounted is the solenoid valve. After installation in the pipeline and the connection of control signal and compressed air supply, the unit is immediately ready for use.The function of this ball valve actuator unit is pneumatically double-acting. Further information can be found in our technical portal. The actuator and the solenoid valve are completely assembled in our factory, adjusted and subjected to a functional test before delivery.Features:

• Mounting pad for actuator with two scribed circles
• Simple, standardized assembly of extensions, signal transmitters or control devices conform with EN 12116 (ISO5211)
• Stem seals with spring washer set and lock plate, maintenance free
• Body parts with centering grooved and tongued, for ease assembly (e.g. after welding)

For higher temperatures above +80°C please refer to the Pressure-Temperature-Diagram in the data sheet.The ball valve is available in many variants and designs and can be ordered online in our shop:

• two sides female threaded connection
• two sides welded connection
• cavity-free sealing system
• Temperature version with pressure compensation bore and ball seals with reinforced carbon fibre
• direct mounted limit switches and solenoid valves

For the use of the ball valve in explosive atmospheres according to Directive 2014/34/EU, a special ATEX version is also available.
